Chiziq post izolyatori
Yuk ko'tarish quvvati hajmi: 69kn
Rang: kulrang
Tovar: Cowinelec, OEM, ODM
69kv 6kn Polimer Post izolyatori
Asosiy ma'lumotlar.
Model №: CEC-69/6
Yuk ko'tarish quvvati hajmi: 69kn
Rang: kulrang
Tovar: Cowinelec, OEM, ODM
Chiqish masofasi: 1900kv
Izolyatsiya masofasi: 660
Struktura balandligi: 864
MDcl: 5,9 kn
Transport paketi: karton
Xususiyatlar: moslashtirilgan
Savdo belgisi: COWINELEC, OEM yoki ODM
Kelib chiqishi: Xitoy, Zhejiang
HS kodi: 8546900000
Ishlab chiqarish quvvati: 30000PCS/oy
Mahsulot tavsifi

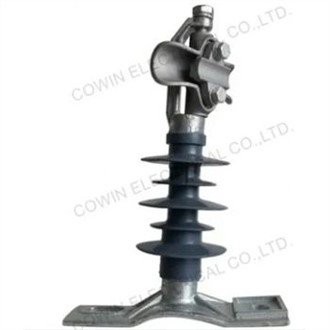

69KV 6KN polimer post izolyatori
Spetsifikatsiya
1. Nominal kuchlanish: 69KV
2. MDCL: 5.9KN
3.Tuzilish balandligi H: 864±15mm
4. Izolyatsiya masofasi H.: 660 mm
5. Siqilish masofasi: 1900 mm
6. Stend kuchlanishli quruq quvvat chastotasi: 251KV
7. Nam quvvat chastotasiga chidamli kuchlanish: 209KV
Qo'llaniladigan standart: IEC61952
Suspension silikon izolyator / Polimer izolyator / Kompozit izolyator
Nominal kuchlanish 10 -- 500kV, nominal ishlamay qolgan yuk 70 -- 160kN; Xalqaro standartlar bilan tasdiqlang; OEM yoki ODM xush kelibsiz.
Foydalanish: Mahsulot shahar elektr tarmog'ining innovatsiyalari uchun javob beradi, bu erda kuchlanishni oshirish va tor ko'chadan foydalangan holda elektr energiyasini samarali tashish mumkin. Va u ustun/minoraning kerakli balandligini kamaytirishi mumkin. Yuqori egilish kuchi tufayli u chinni xoch qo'lida sodir bo'lgan yorilish holatlaridan butunlay xalos bo'ladi. Bundan tashqari, u ifloslanishga yaxshi chidamli bo'lishi mumkin.
Shuningdek, biz sizning spetsifikatsiyangizga muvofiq maxsus etkazib beramiz, pls bizga tafsilotlarni yuboring.
Shakl raqami. | Model | Baholangan Kuchlanishi | Belgilangan mexanik yuk | Ulanish hajmi | Bo'lim uzunligi | Izolyatsiya uzunligi | Chiziq diametrlari | Shed Bo'shliq | Baholash halqasining diametri | Minimal siqish | To'liq to'lqinli impulsga chidamli kuchlanish (cho'qqi) | Nam o'tish impulslariga qarshilik | 1 min ho'l quvvat chastotasi chidamli kuchlanish | Og'irligi (ma'lumot uchun) |
kV | kN | H | h | d1/d1/d2 | B | D1/D2/D3 | L | dan katta yoki teng | dan katta yoki teng | dan katta yoki teng | kg | |||
1 | FXBW-±1000/(420/400) | ±1000 | 420/400 | 28 | 11000±50 | 10000 | 246/158/98 | 158 | 1600/600/400 | 40000 | ±4500 | ±2400 | ±1125 | 136 |
2 | FXBZ-±800/(240/ | ±800 | 240/210/ | 20 | 8700±50 | 8000 | 246/158/98 | 158 | 1120/560/232 | 31100 | ortiqcha 3600 | ortiqcha 1950 | ortiqcha 900 | 115 |
3 | FXBW-750/(120/100) | 750 | 120/100 | 16 | 7150±50 | 6500 | 174/88 | 79 | 440/450/500 | 23800 | 2700 | 1800 | 1120 | 52 |
4 | FXBZ-±660/(240/ | ±660 | 240/210/ | 20 | 7800±50 | 7100 | 174/88 | 79 | 600 | 25800 | ortiqcha 3200 | ortiqcha 1800 | ortiqcha 780 | 58 |
5 | FXBZ-±500/(240/ | ±500 | 240/210/ | 20 | 5440±50 | 4900 | 174/88 | 79 | 400 | 17600 | ortiqcha 2550 | ortiqcha 1550 | ortiqcha 600 | 36 |
6 | FXBW-400/(120/100) | 400 | 120/100 | 16 | 3910±50 | 3300 | 171/85 | 79 | 370 | 12800 | 2250 | 1240 | 740 | 27 |
7 | FXBW-330/(120/100 | 330 | 120/100/70 | 16 | 2990±40 | 2600 | 162/86 | 95 | 305/350 | 9400 | 1425 | 950 | 570 | 19 |
8 | FXBW-220 (230)/(120/100/70) | 220/230 | 120/100/70 | 16 | 2240±30 | 1900 | 162/86 | 95 | 305/250 | 6800 | 1000 | 395 | 12 | |
9 | FXBW-110 (115)/(120/ | 110/115 | 120/100/70 | 16 | 1240±15 | 1000 | 162/86 | 95 | 250 | 3300 | 550 | 230 | 5.3 | |
10 | FXBW-69 (66/63)/ | 69/66/63 | 120/100/70 | 16 | 940±15 | 740 | 162/86 | 95 | 2200 | 410 | 185 | 3.7 | ||
11 | FXBW-15 (12/11/10)/ | 15/12/11/10 | (80/70/40) | 16 | 340±3 | 163 | 150/115/80 | 50 | 400 | 95 | 60 | 400 | 1.4 |
